Description

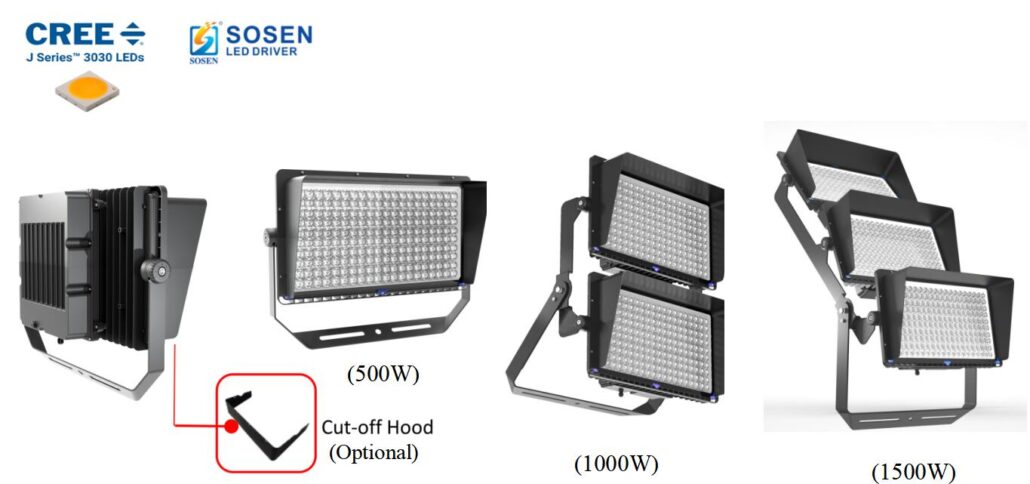

Extremely powerful Ultra-power LED Floodlights,Full range power input 90~305VAC, Beam Angles: Asymmetric 80 °x150 °/ 7 °/ 15 °/ 30 °/ 60 ° / 90 ° / 120 °.With a wide power range from 500W up to 1500W, this extruded alumium robust and highly competitive range is an ideal choice in an infinite number of applications, both domestic and industrial. All the features and benefits you would expect to find in Lumievo floodlights are to be found in this superb model line-up, including CREE J Series LEDs, SOSEN LED Driver,a highly attractive black textured powder coated finish and great energy savings of up to 80%.

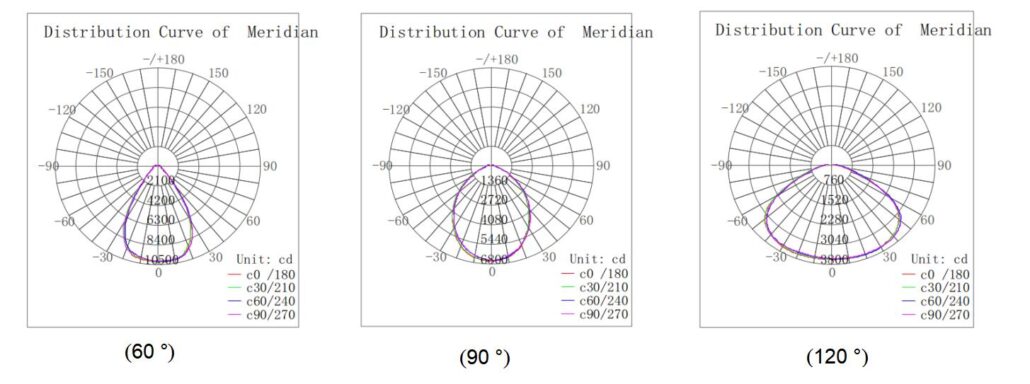

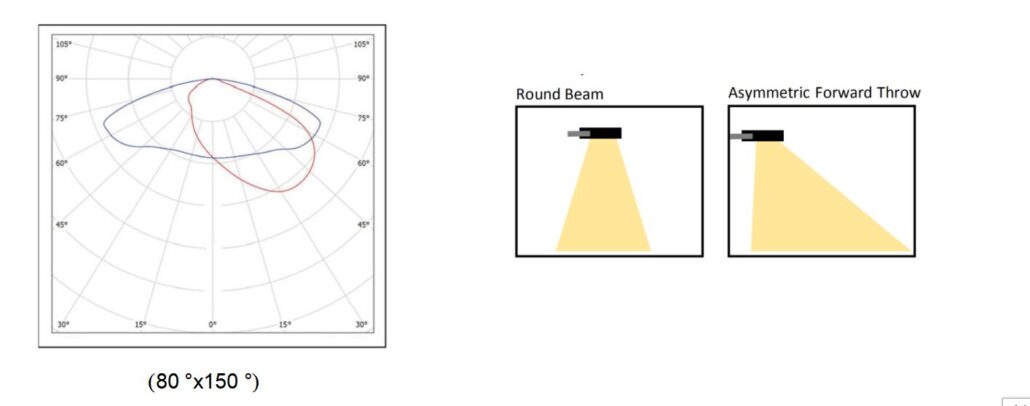

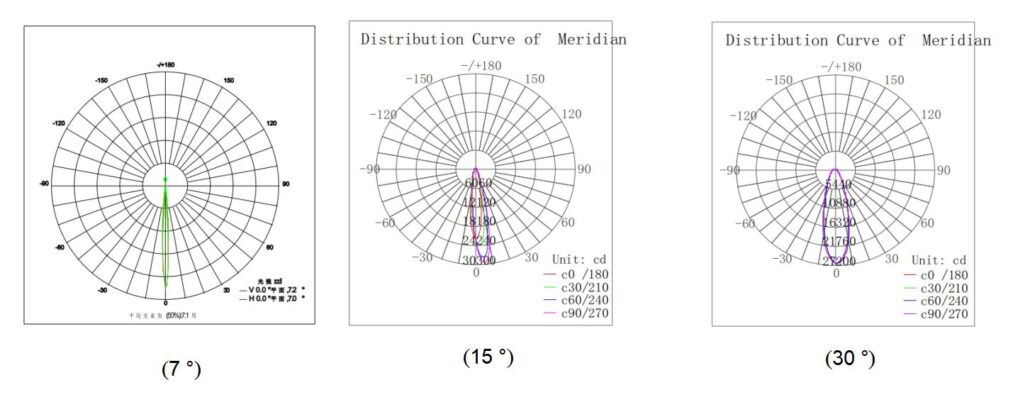

Photometric curve

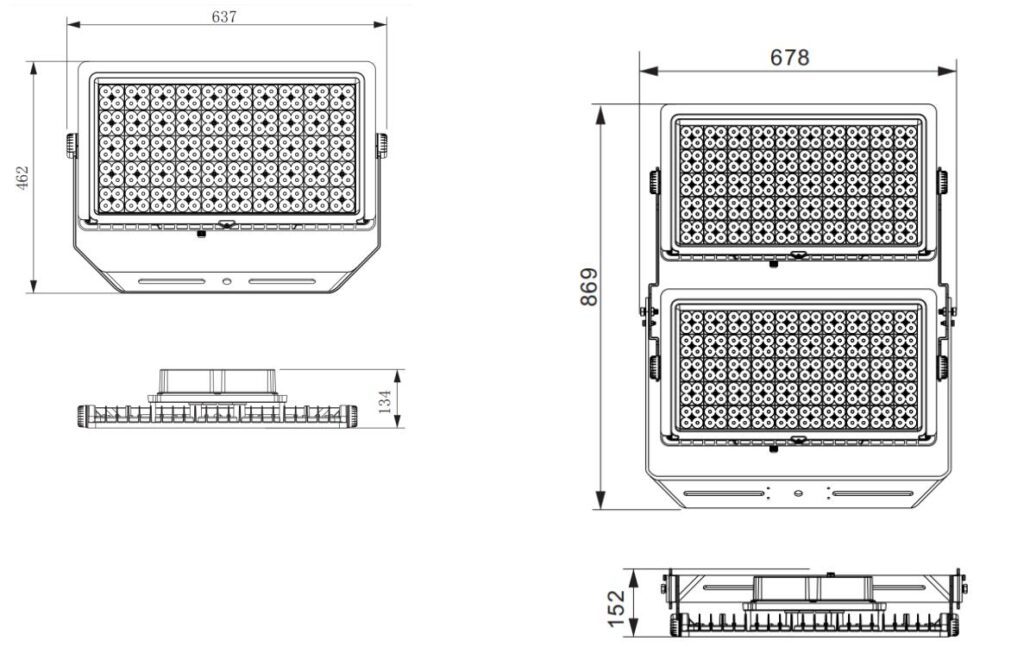

Dimension(Unit:mm)
Package Infos
500W
1PCS/Carton
Net Weight:15KGS
Gross Weight:16KGS
Carton Dimension: 672X534X188mm
1000W
1PCS/Carton
Net Weight:32KGS
Gross Weight:33KGS
Carton Dimension: 932X718X198mm

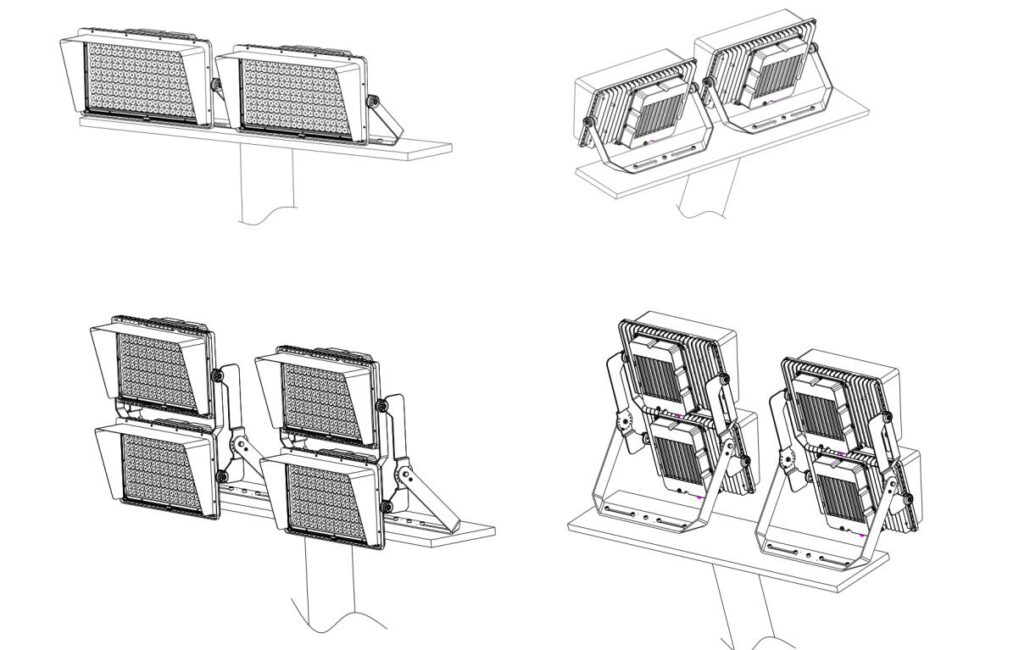

Installation
- Fix the bracket by expansion screw in proper size.
- Adjust the floodlight to achieve expected emitting angle.
- Make connection with mains supply as per following instruction and light up.
