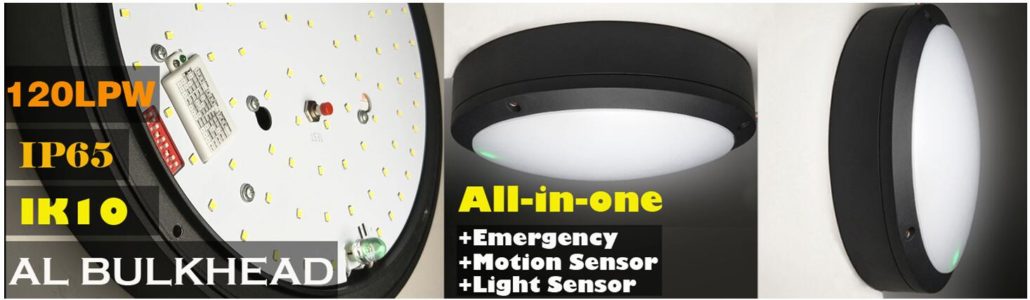

Round DieCast Bulkhead Introduction

A robust IK10 IP66 rated range of wall mounted and ceiling mounted diecast LED bulkheads. Manufactured in a heavy-gauge aluminum case and finished in an attractive black/white with various option. Delivering reliable and stable performance, our diecast bulkheads are an ideal option for a wide range of applications where a heavy-duty fixture is required. UV stabilised opal polycarbonate diffuser

Microwave sensor and emergency options available.
[/av_textblock]

[av_image src=’https://www.lumievo.com/wp-content/uploads/2017/08/12414.jpg’ attachment=’717′ attachment_size=’full’ align=’left’ styling=” hover=” link=” target=” caption=” font_size=” appearance=” overlay_opacity=’0.4′ overlay_color=’#000000′ overlay_text_color=’#ffffff’ animation=’no-animation’][/av_image]

[av_textblock size=” font_color=” color=”]
Certificate
[/av_textblock]

[av_image src=’https://www.lumievo.com/wp-content/uploads/2017/08/带ＳＡＡ-1030×173.jpg’ attachment=’285′ attachment_size=’large’ align=’left’ styling=” hover=” link=” target=” caption=” font_size=” appearance=” overlay_opacity=’0.4′ overlay_color=’#000000′ overlay_text_color=’#ffffff’ animation=’no-animation’][/av_image]
[/av_three_fifth]

[av_two_fifth min_height=” vertical_alignment=” space=” custom_margin=” margin=’0px’ padding=’0px’ border=” border_color=” radius=’0px’ background_color=” src=” background_position=’top left’ background_repeat=’no-repeat’ animation=” mobile_display=”]
[av_textblock size=” font_color=” color=”]
Technical Specifications：

Power Consumption: 20W /30W
Two Sizes: φ270*80 mm / φ350*110 mm
Input Voltage: 100-240V 50/60Hz
Power Factor: >0.9
CRI: >80
CCT: 3000-6000K
Lumen(@4000K): 1850lm /2750lm
Optional Powder Coated Finish: White/Black/Grey

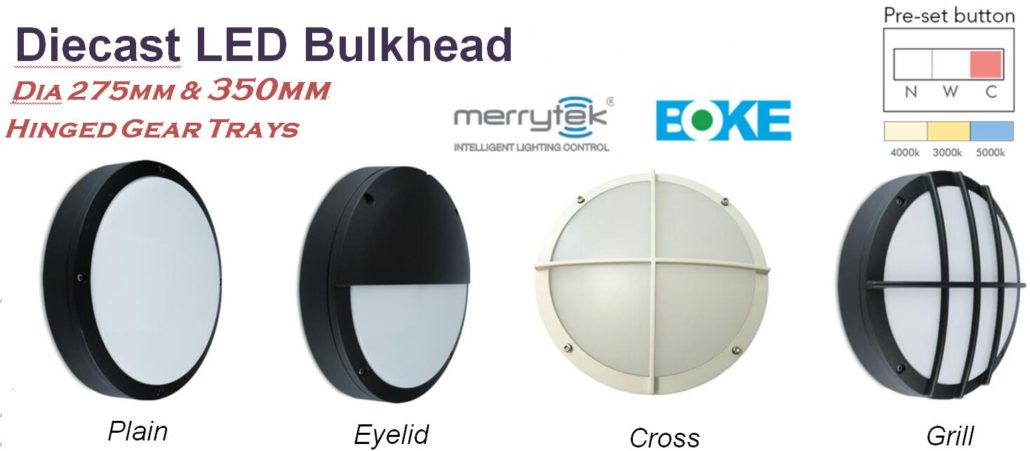

Optional Protection Strips: Plain/Eyelid/Cross/Grille
Optional Function:
*Microwave Motion Sensor with Dim Down available
*90-180mins Emergency Lighting available

*3-CCT Selector Switch
[/av_textblock]
[/av_two_fifth]

[av_textblock size=” font_color=” color=”]

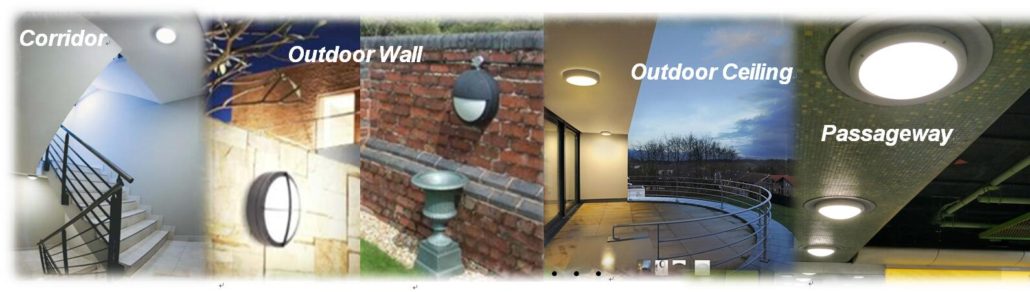

Applications：

Public buildings, car parks to industrial facilities, general lighting of circulation areas both exterior and interior, such as stairwells, Balcony, and outdoor wall.

Description:

A robust IK10 IP66 rated range of wall mounted and ceiling mounted diecast LED bulkheads.
Manufactured in a heavy-gauge aluminum case and finished in an attractive black/white with various option. Delivering reliable and stable performance, our diecast bulkheads are an ideal option for a wide range of applications where a heavy-duty fixture is required. UV stabilized opal polycarbonate diffuser

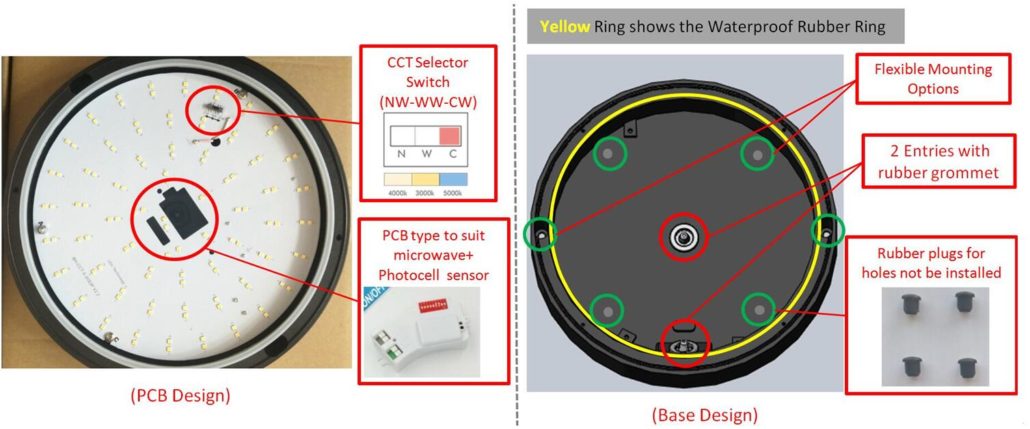

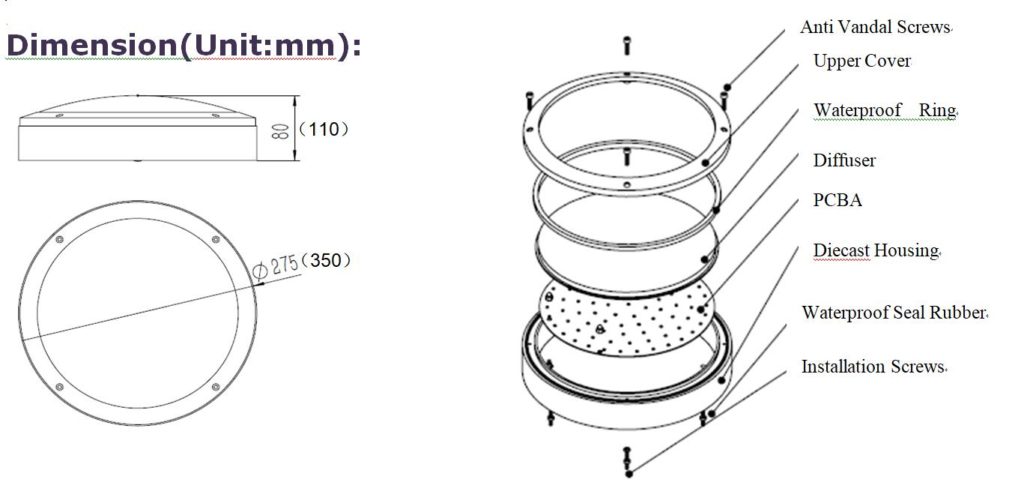

Interior Design:

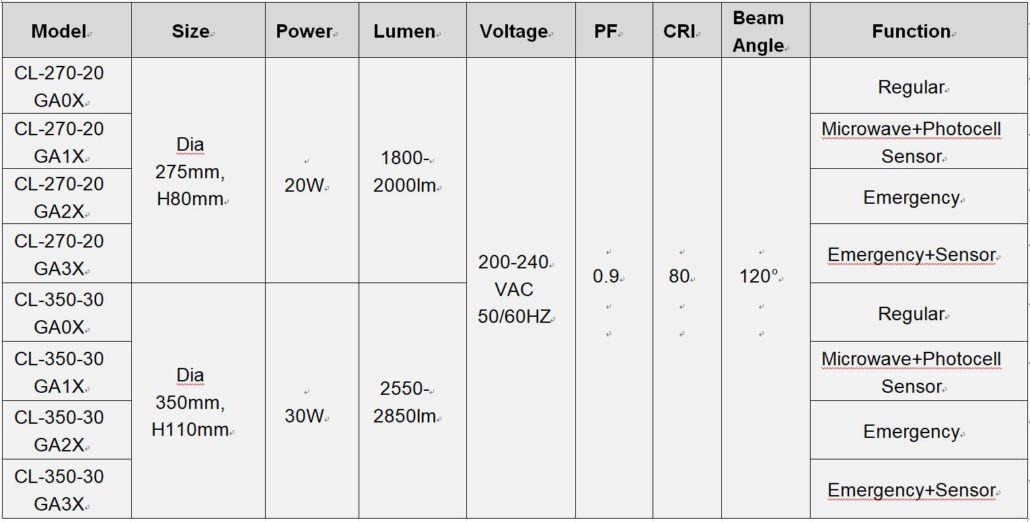

Technical Parameters:

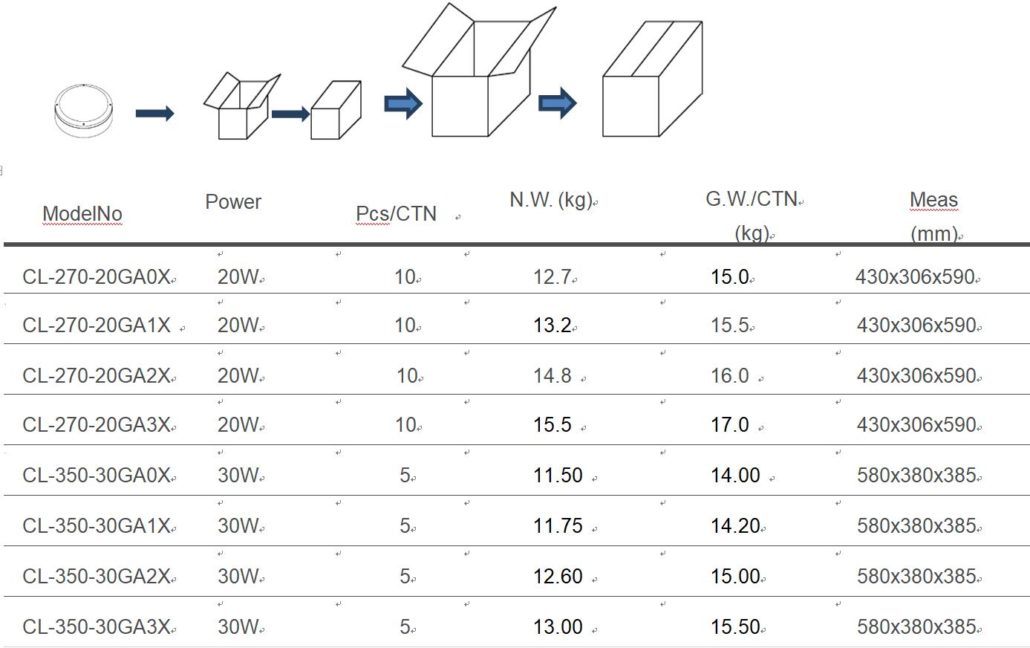

Package Infos:
